Introduction

McCulloch (a neuroscientist) and Pitts (a logician) proposed a highly simplified computational model of the biological neuron in 1943, known as the McCulloch-Pitts (MP) neuron, in their seminal paper (McCulloch & Pitts, 1943). The goal was to try and mimic the biological neuron and check if some simple functions can be implemented.

Thresholding Logic

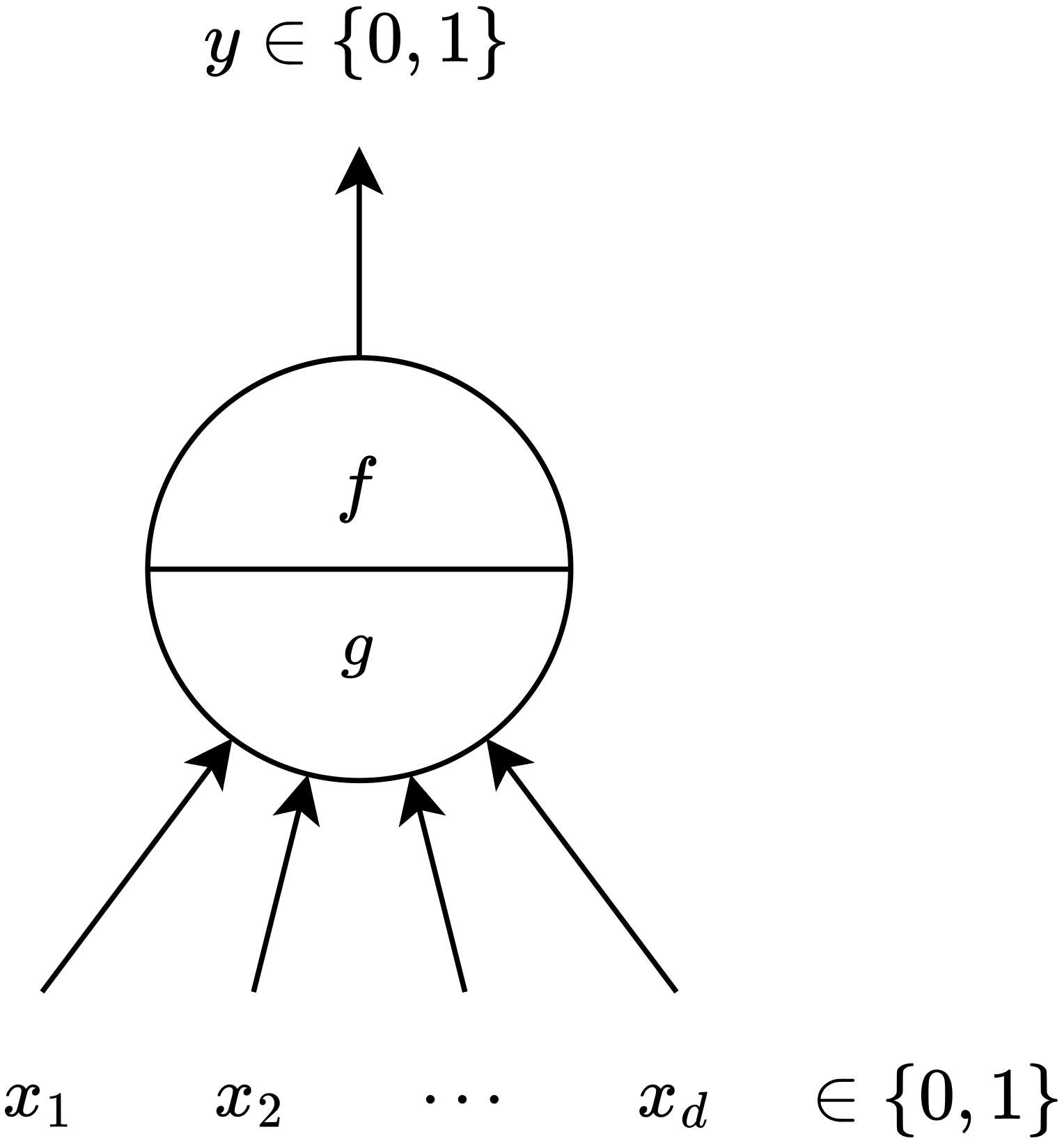

Consider \(d\) binary input features represented as \(x_1\), \(x_2\), \(\dots\), \(x_d\), and a binary output \(y\). This is shown in Figure 1.

What this model does is something very simple. It first aggregates all the inputs, which is indicated by \(g\), and then applies a basic threshold function \(f\) on this aggregation. More precisely, the following is what happens. The inputs \(x_1\), \(x_2\), \(\dots\), \(x_d\) can be excitatory or inhibitory.

• If any of the inputs \(x_j\) (where \(j\in \{1, 2, \dots, d\}\)) is inhibitory:
  • Then the output is \(y=0\)
• Else if none of the inputs \(x_j\) are inhibitory:

  • The function \(g\) aggregates the inputs, i.e.,

    \[\begin{equation}\label{eq:mp_neuron_aggregation} g\left(x_1, x_2, \dots, x_d\right) = g\left(\mathbf{x}\right) = \sum_{j=1}^{d} x_j, \end{equation}\]

    and the output \(y\) is given by:

    \[\begin{equation}\label{eq:mp_neuron_thresholding_logic} y = f (g (\mathbf{x})) = \begin{cases} 1, & \text{if $g(\mathbf{x}) \geq \theta$},\\ 0, & \text{if $g(\mathbf{x}) < \theta$}. \end{cases} \end{equation}\]

    This can be more simply written as:

    \[\begin{equation}\label{eq:mp_neuron_thresholding_logic_simpler} y = f \left(x_1, \dots, x_d\right) = \begin{cases} 1, & \text{if $x_1 + \cdots + x_d \geq \theta$},\\ 0, & \text{if $x_1 + \cdots + x_d < \theta$}. \end{cases} \end{equation}\]

    Here, \(\theta\) is called the thresholding parameter. So, the output \(y\) is \(1\) if the aggregation (or the sum) of all the inputs is greater than or equal to the thresholding parameter \(\theta\), and \(0\) otherwise.

Note that in Equation \eqref{eq:mp_neuron_thresholding_logic}, we are representing all the inputs \(x_1\), \(x_2\), \(\dots\), \(x_d\) collectively in the vector \(\mathbf{x}\), which is given by

\[\mathbf{x} = \begin{bmatrix} x_1\\ x_2\\ \vdots\\ x_d \end{bmatrix}\]

To build an intuition for thresholding, consider the example of deciding whether you would like a movie given some of its features (or inputs) that are binary. You are given a dataset of movies. The output \(y\) of a movie is \(1\) if you like it, and \(0\) if you don’t. The binary features can be

\[\begin{align*} x_1 &= \text{Is the director Nolan?}\\ x_2 &= \text{Is the movie Sci-Fi?}\\ x_3 &= \text{Is the IMDB rating $>8$?}\\ \vdots \end{align*}\]

Think of these features as favourable checks. In other words, if more of these binary features have the value \(1\), it is more likely that you would like the movie. The thresholding parameter \(\theta\) here models your personality. If you are someone who would like any movie, then \(\theta\) would be lower for you. However, if you like the movie only when most of your favourable checks are satisfied, then \(\theta\) would be higher for you.

Implementing Boolean Functions

What it means to implement a Boolean function is the following. Consider the AND Boolean function. The output of this function is \(1\) only if all the inputs are \(1\). Else, the output is \(0\). So, an MP neuron will be able to implement this Boolean function if it exactly models this behavior.

AND Function

Recall that the equation for an MP neuron is given by Equation \eqref{eq:mp_neuron_thresholding_logic_simpler}. Consider that there are \(3\) Boolean inputs \(x_1\), \(x_2\), and \(x_3\), and all of them are excitatory. So, the MP neuron modeling the AND function should have three inputs. Hence, substituting \(d=3\) in Equation \eqref{eq:mp_neuron_thresholding_logic_simpler}, we get

\[y = f \left(x_1, x_2, x_3\right) = \begin{cases} 1, & \text{if $x_1 + x_2 + x_3 \geq \theta$},\\ 0, & \text{if $x_1 + x_2 + x_3 < \theta$}. \end{cases}\]

Now, the AND function outputs \(1\) only if all the inputs are \(1\). If all the inputs are \(1\), we will have their sum as

\[x_1 + x_2 + x_3 = 1 + 1 + 1 = 3\]

This clearly indicates that for an MP neuron modeling the AND function with three inputs, the value of the threshold \(\theta\) should be \(3\). Hence, substituting \(\theta = 3\), we get the equation of this MP neuron as

\[y = f \left(x_1, x_2, x_3\right) = \begin{cases} 1, & \text{if $x_1 + x_2 + x_3 \geq 3$},\\ 0, & \text{if $x_1 + x_2 + x_3 < 3$}. \end{cases}\]

OR Function

Again, recall that the equation for an MP neuron is given by Equation \eqref{eq:mp_neuron_thresholding_logic_simpler}. Consider that there are \(3\) Boolean inputs \(x_1\), \(x_2\), and \(x_3\), and all of them are excitatory. So, the MP neuron modeling the OR function should have three inputs. Hence, substituting \(d=3\) in Equation \eqref{eq:mp_neuron_thresholding_logic_simpler}, we get

\[y = f \left(x_1, x_2, x_3\right) = \begin{cases} 1, & \text{if $x_1 + x_2 + x_3 \geq \theta$},\\ 0, & \text{if $x_1 + x_2 + x_3 < \theta$}. \end{cases}\]

Now, the OR function outputs \(1\) only if at least one of the inputs is \(1\). If this is true, then the least value of their sum is

\[x_1 + x_2 + x_3 = 1\]

This clearly indicates that for an MP neuron modeling the OR function with three inputs, the value of the threshold \(\theta\) should be \(1\). Hence, substituting \(\theta = 1\), we get the equation of this MP neuron as

\[y = f \left(x_1, x_2, x_3\right) = \begin{cases} 1, & \text{if $x_1 + x_2 + x_3 \geq 1$},\\ 0, & \text{if $x_1 + x_2 + x_3 < 1$}. \end{cases}\]

NOT Function

For an MP neuron to model the NOT function, we will have to consider just a single input \(x_1\) that is inhibitory. We will have two cases:

• If \(x_1 = 1\), then \(y = 0\). This case is already handled, as it matches the exact behavior of the NOT function if the input is \(1\).

• If \(x_1 = 0\), then using Equation \eqref{eq:mp_neuron_thresholding_logic_simpler} with \(d=1\), we get

  \[y = f \left(x_1\right) = \begin{cases} 1, & \text{if $x_1 \geq \theta$},\\ 0, & \text{if $x_1 < \theta$}. \end{cases}\]

  As we have \(x_1=0\), and we want the output \(y\) to be the opposite, i.e., \(y=1\) if \(x_1 = 0\), we can model it by assigning \(\theta = 0\). Hence, substituting \(\theta = 0\), we get the equation of this MP neuron in this case as

  \[y = f \left(x_1\right) = \begin{cases} 1, & \text{if $x_1 \geq 0$},\\ 0, & \text{if $x_1 < 0$}. \end{cases}\]

Can any Boolean function be represented using an MP neuron? To answer this, we will first have to understand the geometric interpretation of an MP neuron.

Geometric Interpretation of an MP Neuron

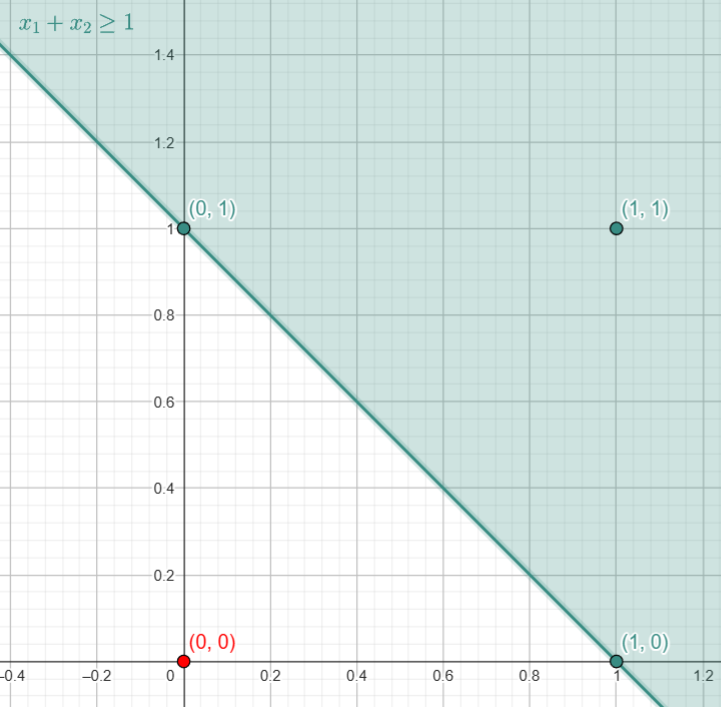

Consider an MP neuron implementing the OR function with two inputs \(x_1\) and \(x_2\). The four possible inputs to the neuron are: \((0, 0)\), \((0, 1)\), \((1, 0)\), and \((1, 1)\). The output, using Equation \eqref{eq:mp_neuron_thresholding_logic_simpler} with \(d=2\) and \(\theta = 1\), is given by

\[y = \begin{cases} 1, & \text{if $x_1 + x_2 \geq 1$},\\ 0, & \text{if $x_1 + x_2 < 1$}. \end{cases}\]

Clearly, we get a linear decision boundary given by the equation

\[x_1 + x_2 = 1.\]

Any input point lying on or in the positive half space of this boundary has an output of \(1\), and any input point lying in the negative half space of this boundary has an output of \(0\). Figure 2 shows this.

So, a single MP neuron splits the input points into two halves using a linear boundary, or more generally a hyperplane, given by

\[x_1 + x_2 + \cdots + x_d = \theta,\]

where \(d\) is the number of inputs. All inputs that produce an output of \(0\) will be on one side of this hyperplane, and all the inputs that produce an output of \(1\) will be on the other side of this hyperplane. In other words, a single MP neuron can be used to represent Boolean functions that are linearly separable. Linear separability for Boolean functions means that there exists a line (plane) such that all inputs with an output of \(1\) lie on one side of this line (plane), and all inputs with an output of \(0\) lie on the other side of this line (plane).

Questions to Ponder

Are there any non-linearly separable Boolean functions? If so, can they be represented using an MP neuron? We will address these questions eventually. More precisely, we would like to address the following questions:

• What about non-Boolean (say, real) inputs?
• Do we always need to hand code the threshold?
• Are all inputs equally important?
• What about functions that are not linearly separable?

Summary

• The MP neuron is a binary model that sums inputs and compares the result to a threshold \(\theta\).
• If any input is inhibitory, the output is immediately \(0\).

• Otherwise, the output, for \(d\) input features, is:

  \[y = \begin{cases} 1, & \text{if } \sum_{j=1}^{d} x_j \geq \theta, \\ 0, & \text{otherwise}. \end{cases}\]
• It can implement Boolean functions:
  • AND: \(\theta = d\)
  • OR: \(\theta = 1\)
  • NOT: uses an inhibitory input
• The MP neuron creates a linear decision boundary in input space, and hence it can only model linearly separable Boolean functions.
